Schrack Technik
Preț obișnuit
41,28 lei
Preț obișnuit
Preț redus
41,28 lei
Taxe incluse.
Nu am putut încărca disponibilitatea pentru ridicare

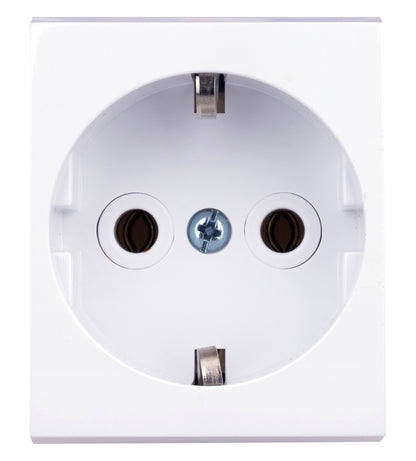

Priză pentru cofrete Gemini suplimentară
- Media combi-enclosures for partition wall or solid wall in two versions:
-
Horizontal 3- to 5-rows as well as
- Vertical 3- to 5-rows
- Horizontal designs:
-
BK0856032K: 3x DIN-rails (36+6MW) and 3x mounting plates
-
BK0856042K: 4x DIN-rails (48+8MW) and 4x mounting plates
-
BK0856052K: 5x DIN-rails (60+10MW) and 5x mounting plates
- For completion, the following articles are necessary:
- 1x Frame with door and insert (3-, 4- or 5-row)
- 2x Wall boxes (3-, 4- or 5-row for solid wall or partition wall)
- 1x Wall box brackets horizontal BK085098-A
- Vertical designs:
-
BK0855032K: 1x DIN-rail (12+2MW), 2x mounting plates and 1x built-in socket
-
BK0855042K: 2x DIN-rails (24+4MW), 2x mounting plates and 1x built-in socket
-
BK0855053K: 2x DIN-rails (24+4MW), 3x mounting plates and 1x built-in socket
-
BK0855052K: 3x DIN-rails (36+6MW), 2x mounting plates and 1x built-in socket
- For completion, the following articles are necessary:
- 1x Frame with door and insert (3-, 4- or 5-row)
- 1x Wall box (3-, 4- or 5-row for solid wall or partition wall)
-
General information:
- WLAN proofed
- Frames and doors in coated sheet steel, all doors with door clip
- Horizontal versions: Media door side with ventilation slots
- Vertical versions: Door with ventilation slots as standard
- Frame design high (ca. 6 mm)
- Mounting plates for active and passive components included
- Glow wire test:
- Resistant to abnormal heat and fire up to 850 °C for partition wall
- Resistant to abnormal heat and fire up to 650 °C for solid wall
- Mounting brackets (included):
- For partition wall (up to 30 mm wall thickness)
- For solid wall (Dovetail mounting brackets for front or back panel mounting)
- Protection class: II
- Degree of protection: IP30
- Impact Resistance: IK08
- Color: RAL9003 (Signal white)
Specificații tehnice
| Lăţime |
44 mm |
| Culoare |
Alb |
| HxBxT mm |
54x44x40 |
| PROMO CODE CH |
2544-0006-42 |
| COD PROMO |
2544-0004-78 |
| Unitate de ambalare |
1 m. |
| Fabricant |
Schrack |
| Masă netă |
0,07 kg/m |
| Adâncime |
39 mm |
| Înălţime |
53 mm |
| PU |
5 |
| LxÎxA mm |
44x54x40 |
| Greutate |
0.07 kg |
| Cod EAN |
9004840882544 |
| Cantitate minimă comandă |
1 buc. |
| Cod tarifar vamal |
85366990 |
Cod produs Schrack: BK085049--
