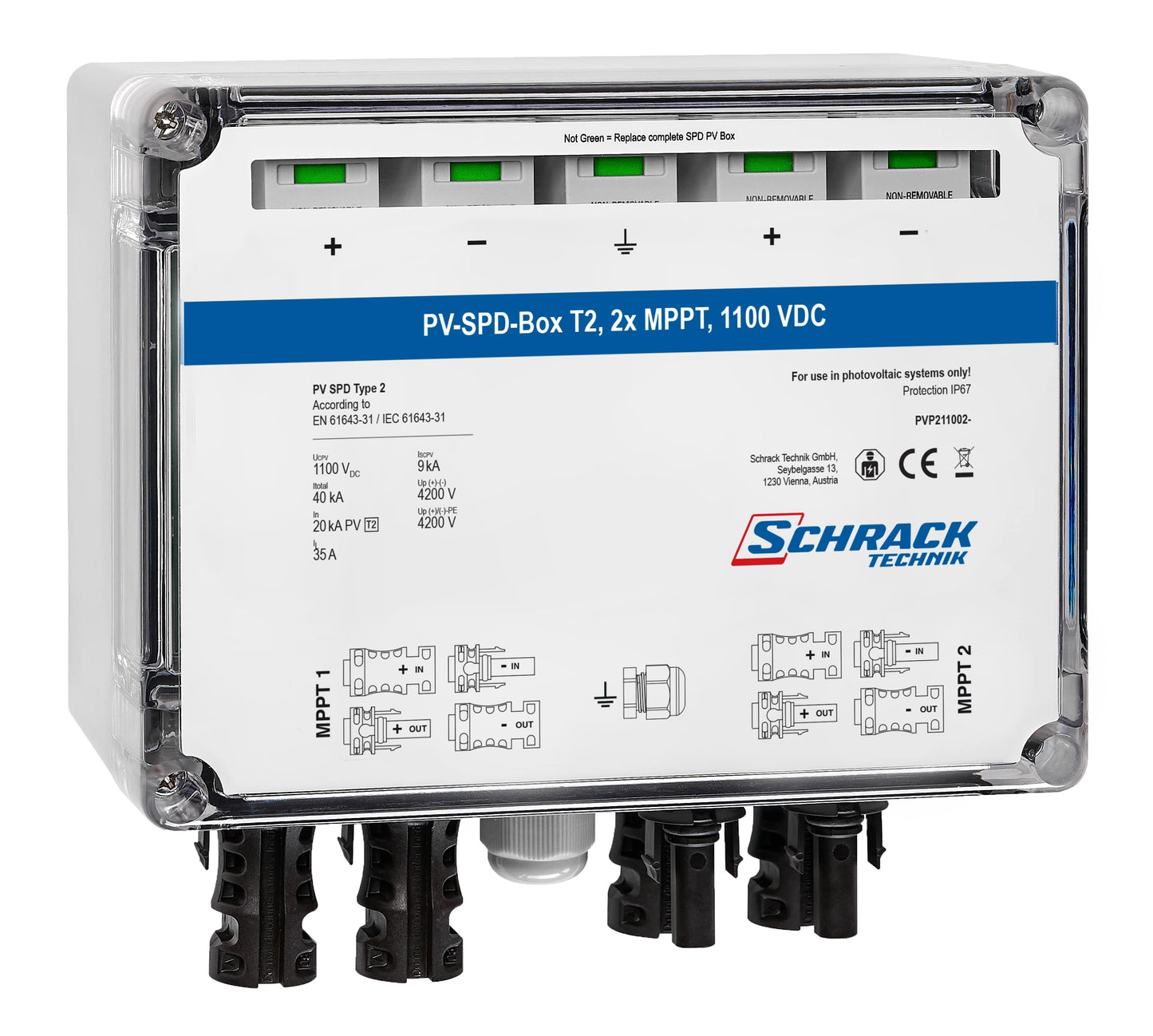

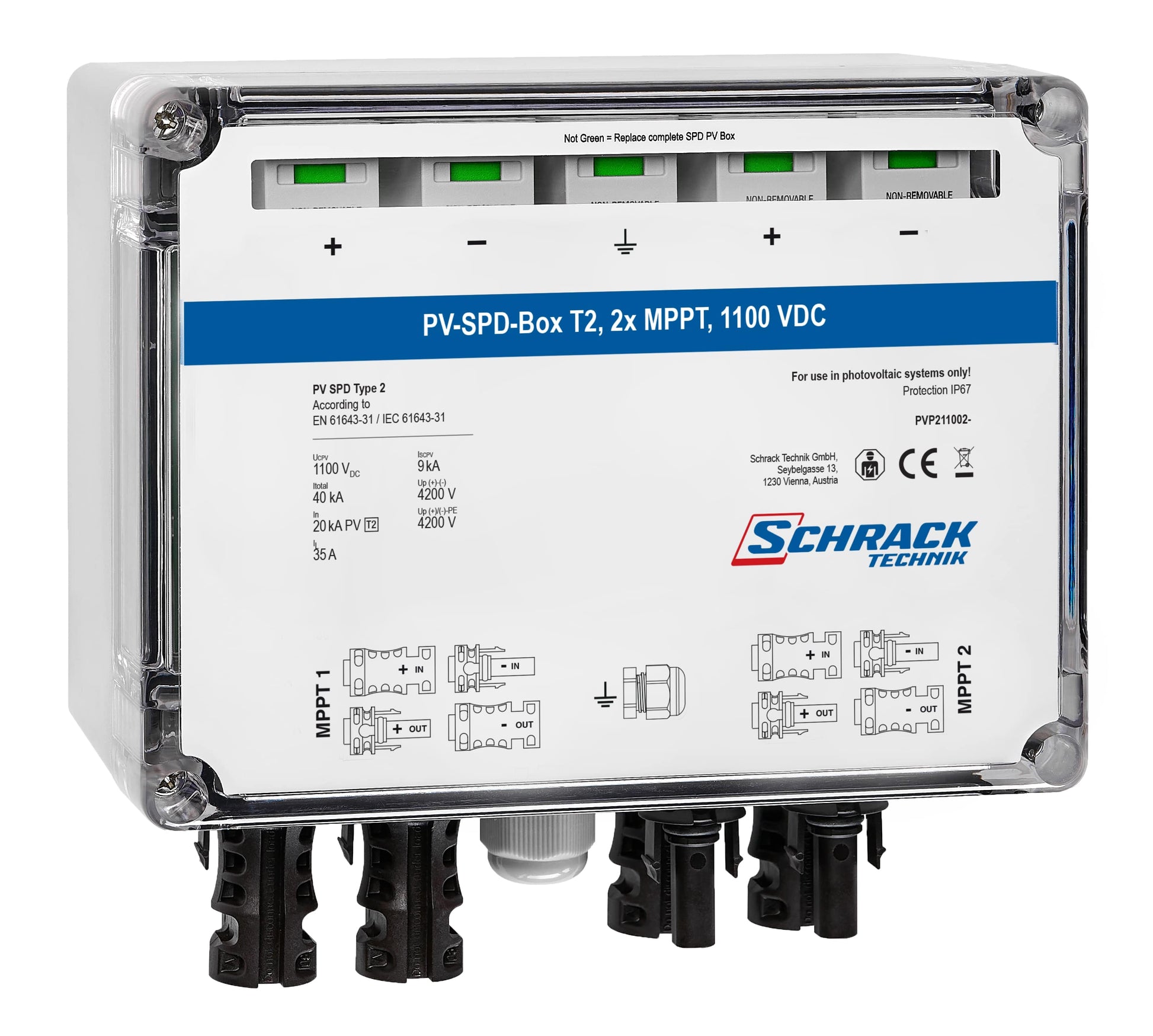

PV-SPD-Box T2 2x MPPT 1100VDC pentru 2-MPPT Testclass II (C)
Field of application
- Protection of photovoltaic systems against lightning and overvoltages
- Use of PV connection boxes for DC systems up to 1100VDC
Type and classification
- Type 1/2 (T1/T2) Lightning and surge protection for direct lightning protection and medium surge protection
- Type 2 (T2) Surge protection for damping short-term voltage peaks
- Classified according to EN 61643-31:2019 and IEC 61643-31:2018
Product definitions
- PVP111002- => PV-SPD-Box T1/2, 2x MPPT, 1100VDC, MC4 connection
- PVP211002- => PV-SPD-Box T2, 2x MPPT, 1100VDC, MC4 connection
- PVP111002F => PV-SPD-Box T1/2, 2x MPPT, 1100VDC, flange connection
- PVP211002F => PV-SPD-Box T2, 2x MPPT, 1100VDC, flange connection
- PVP111212- => PV-SPD-Box T1/2, 2xIn/1xOut, 2x MPPT, 1100VDC, MC4 connection
- PVP211212- => PV-SPD-Box T2, 2xIn/1xOut, 2x MPPT, 1100VDC, MC4 connection
Specificații tehnice
| Versiune |
2 siruri/MPP |
| Tensiune nominală maximă DC |
1100 V |
| COD PROMO |
5779-0175-01 |
| PU |
240 |
| Unitate de ambalare |
1 m. |
| PROMO CODE GER |
5779-6163-28 |
| Fabricant |
Schrack |
| LxBxH mm |
200x160x103 |
| PROMO CODE CH |
5779-0192-51 |
| Clasă de protecţie |
TII/C |
| Masă netă |
2,50 kg/m |
| Greutate |
2.5 kg |
| Cod EAN |
9004840905779 |
| Cantitate minimă comandă |
1 buc. |
| Cod tarifar vamal |
85371098 |
Documentație
Cod produs Schrack: PVP211002-
