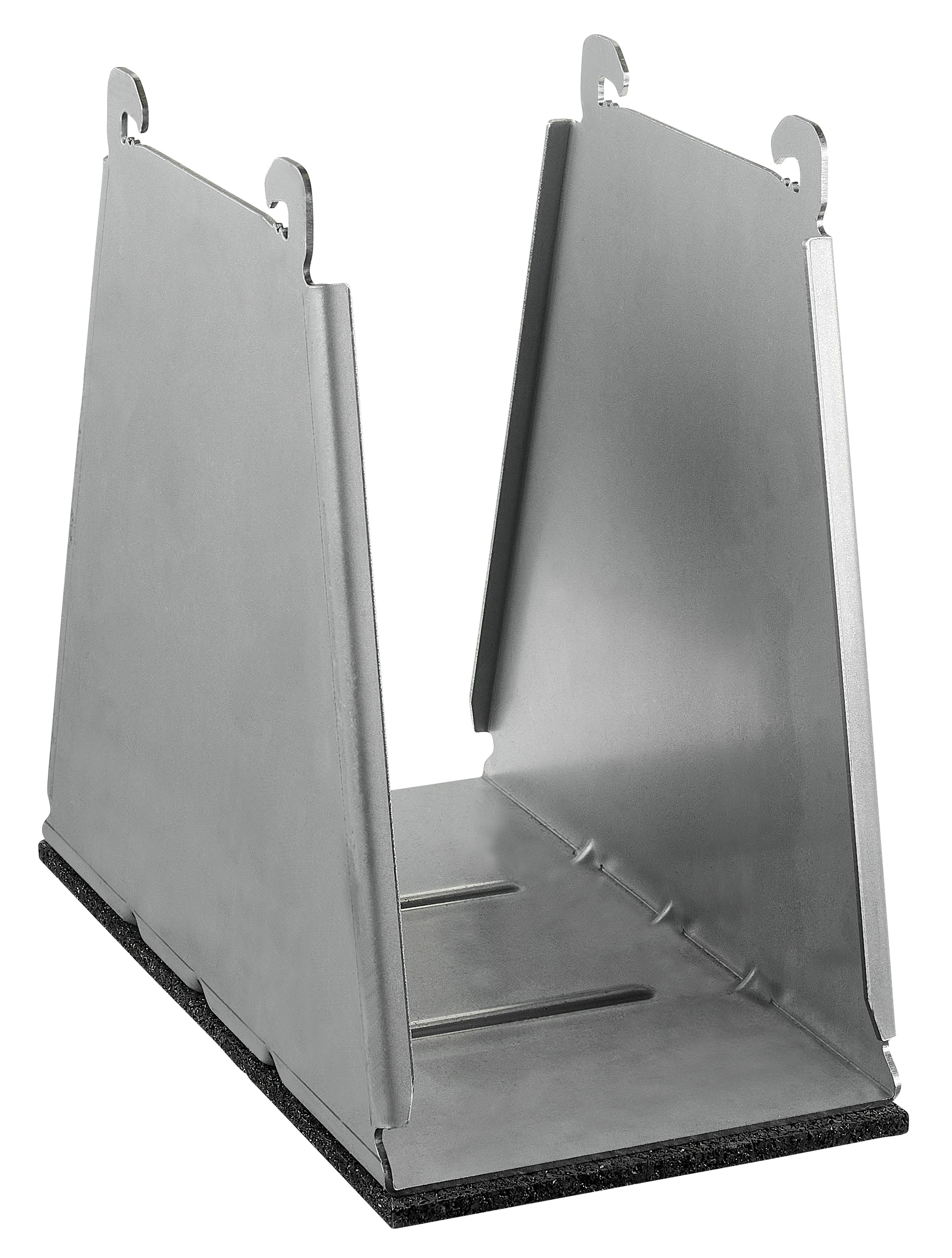

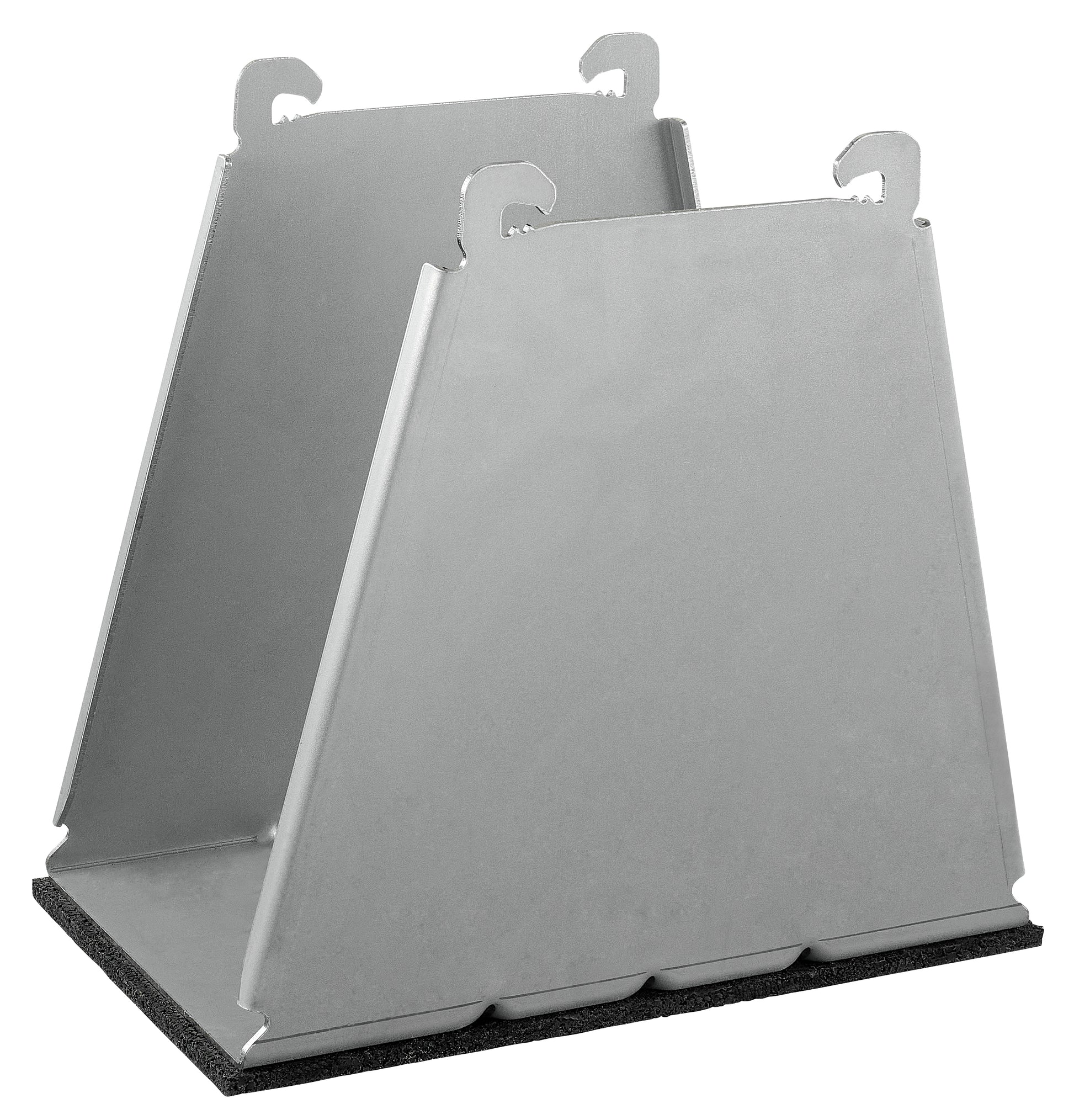

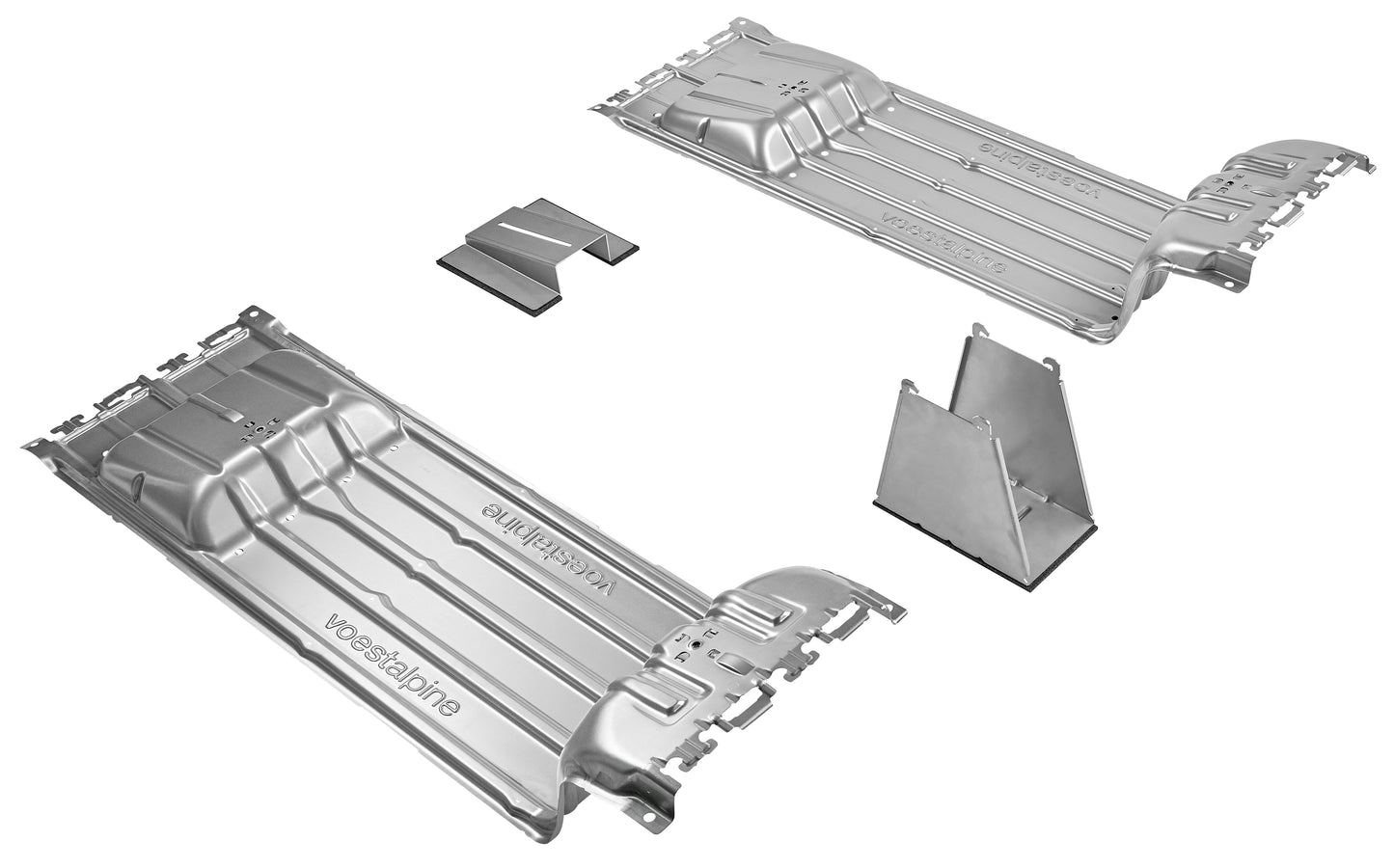

iFIX Alpin high Alu-Protect M
Main features and advantages
- High stability thanks to corrosion-protected zinc-magnesium sheet steel
- Roof type: Flat roofs with a tilt of up to 3° (foil, bitumen, concrete, gravel, green roofs)
- Max. building height 25m
- 12-year guarantee on the iFIX system
- Simple installation thanks to tool-free click system
- Loads: wind loads up to 1,400 N/m², snow load up to 3.8 kN/m²
- Module size: Frame 990 - 1145mm width, 1650 - 2100mm length, max. 2.17m²

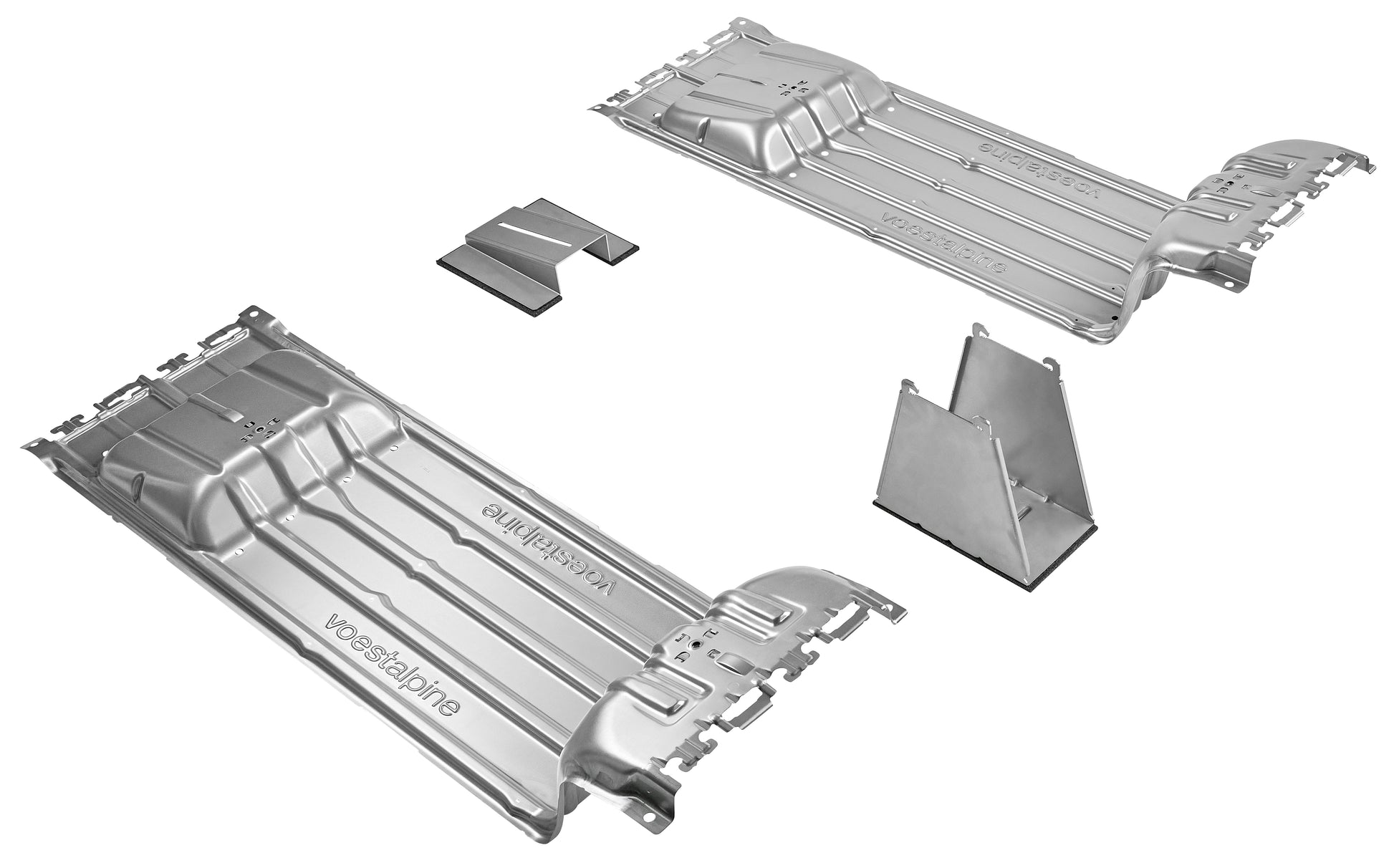

iFIX mounting material - east-west orientation
- Tilt angle: 10°
- Special feature: High area utilisation for maximum yield
i
FIX mounting material - south-facing
- Tilt angle: 10°
- Installation: Click & Slide system with iFIX S Connector & Deflector
- Special feature: Deflector reduces ballast and improves stability
Additional features
- iFIX Tool - web-based planning software for PV projects
- Wind tunnel and static tests according to Eurocode
- Lightning protection and earthing components available
Specificații tehnice
| LxBxH mm |
243x246x140 |
| PROMO CODE CH |
0633-0021-74 |
| Unitate de ambalare |
1 m. |
| Tip acoperiş |
acoperiş plat |
| Fabricant |
VoestAlpine |
| PU |
5 |
| COD PROMO |
0633-0019-76 |
| Masă netă |
1,80 kg/m |
| Greutate |
1.8 kg |
| Cod EAN |
9004840940633 |
| Cantitate minimă comandă |
1 buc. |
| Cod tarifar vamal |
73269060 |
Documentație
Cod produs Schrack: PVF42180--
