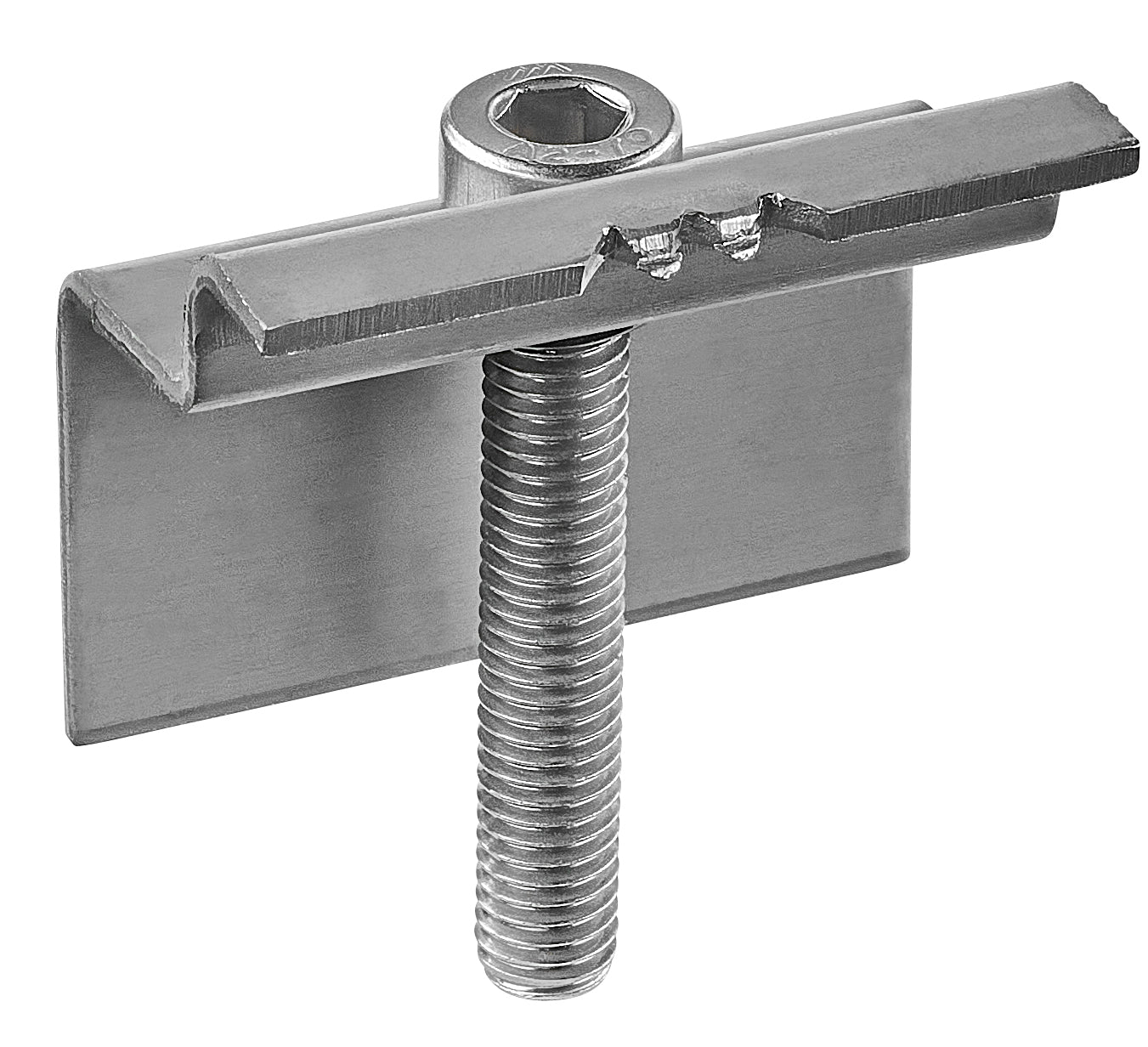

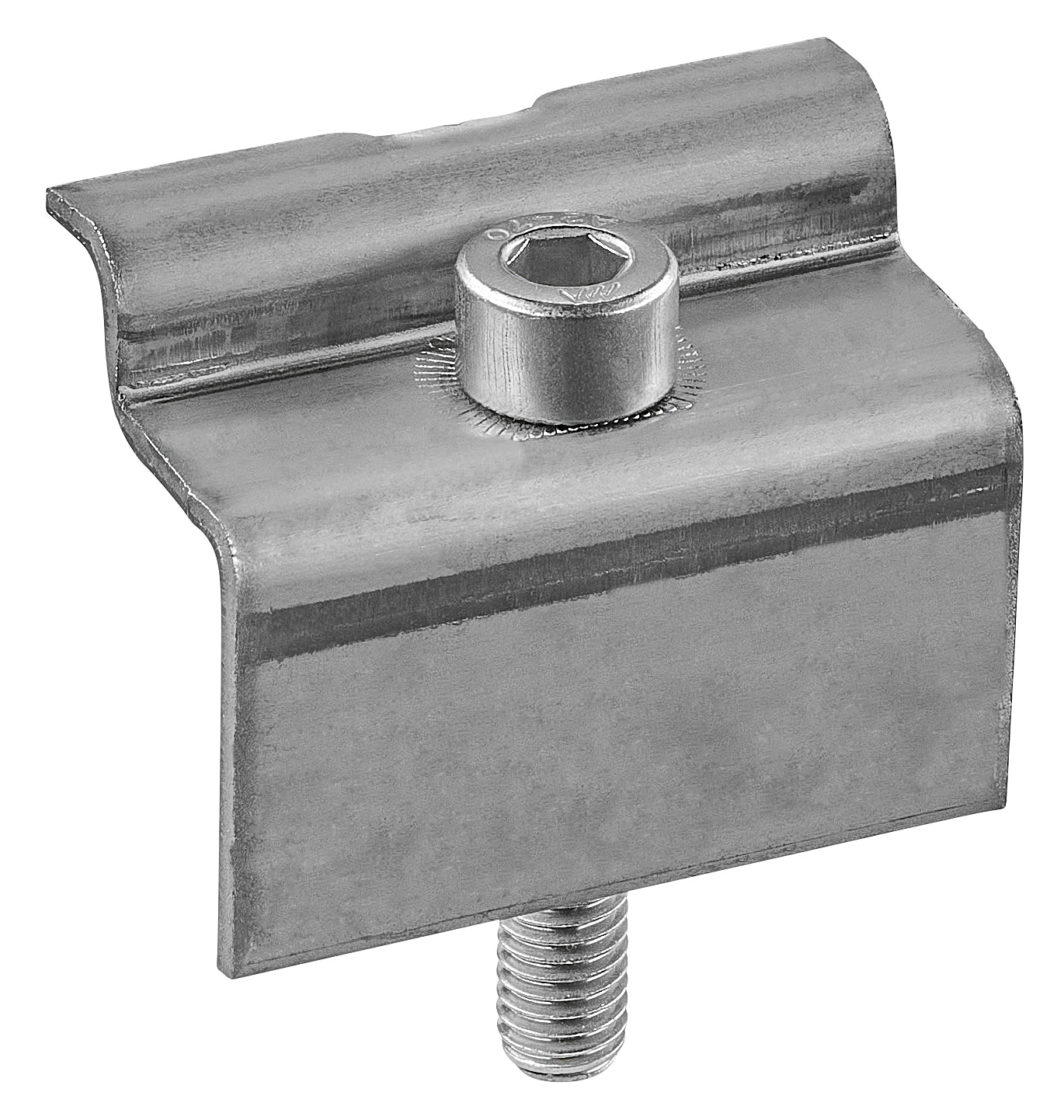

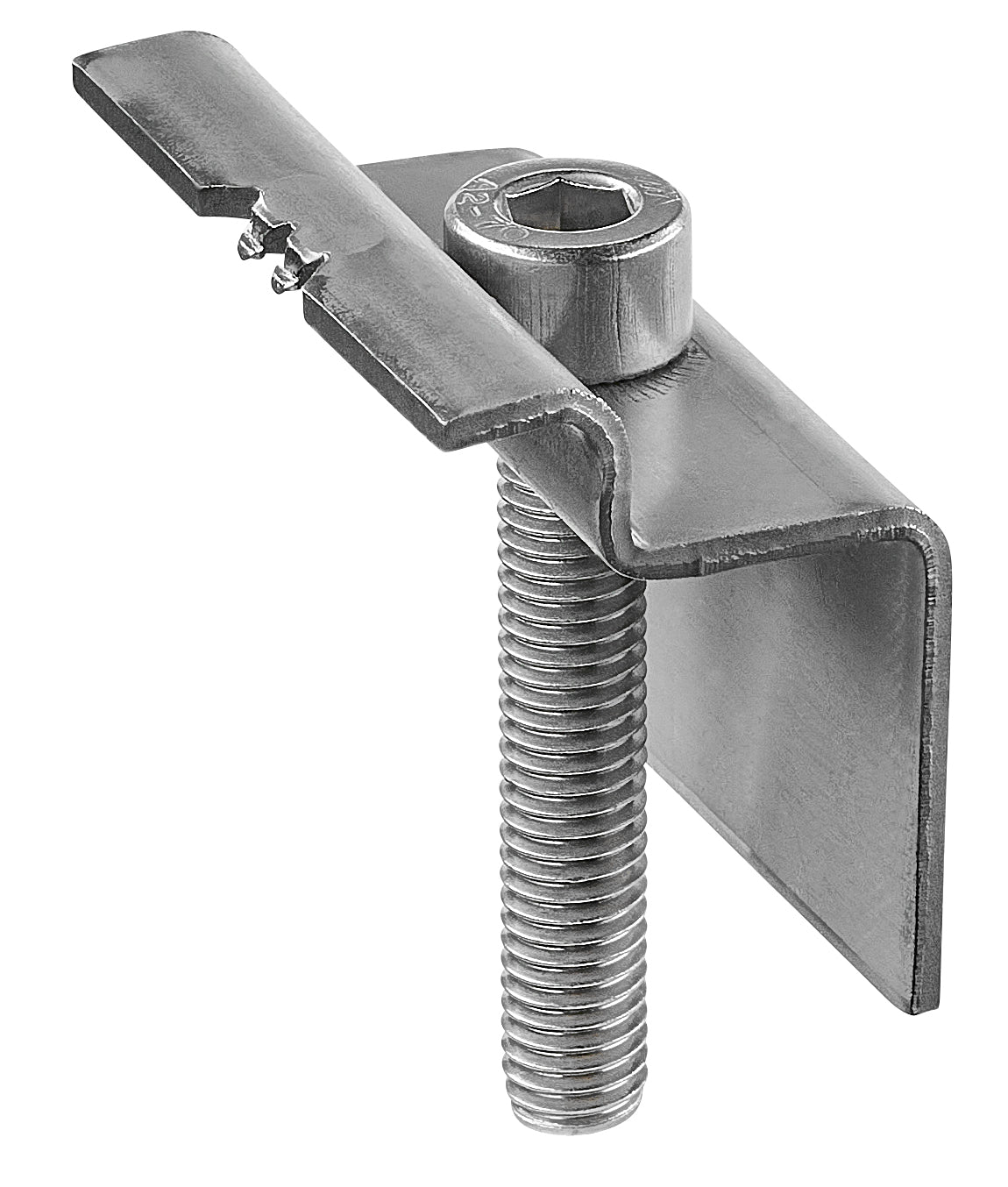

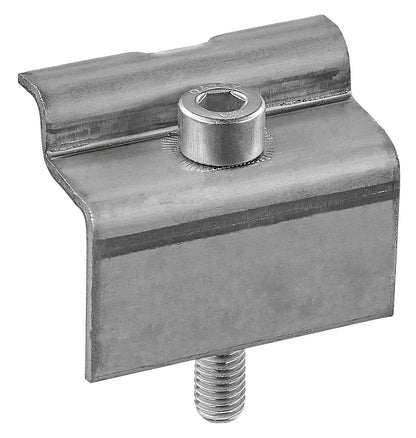

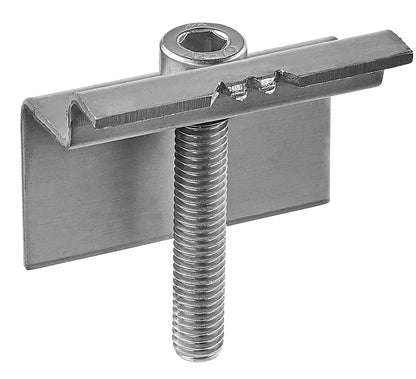

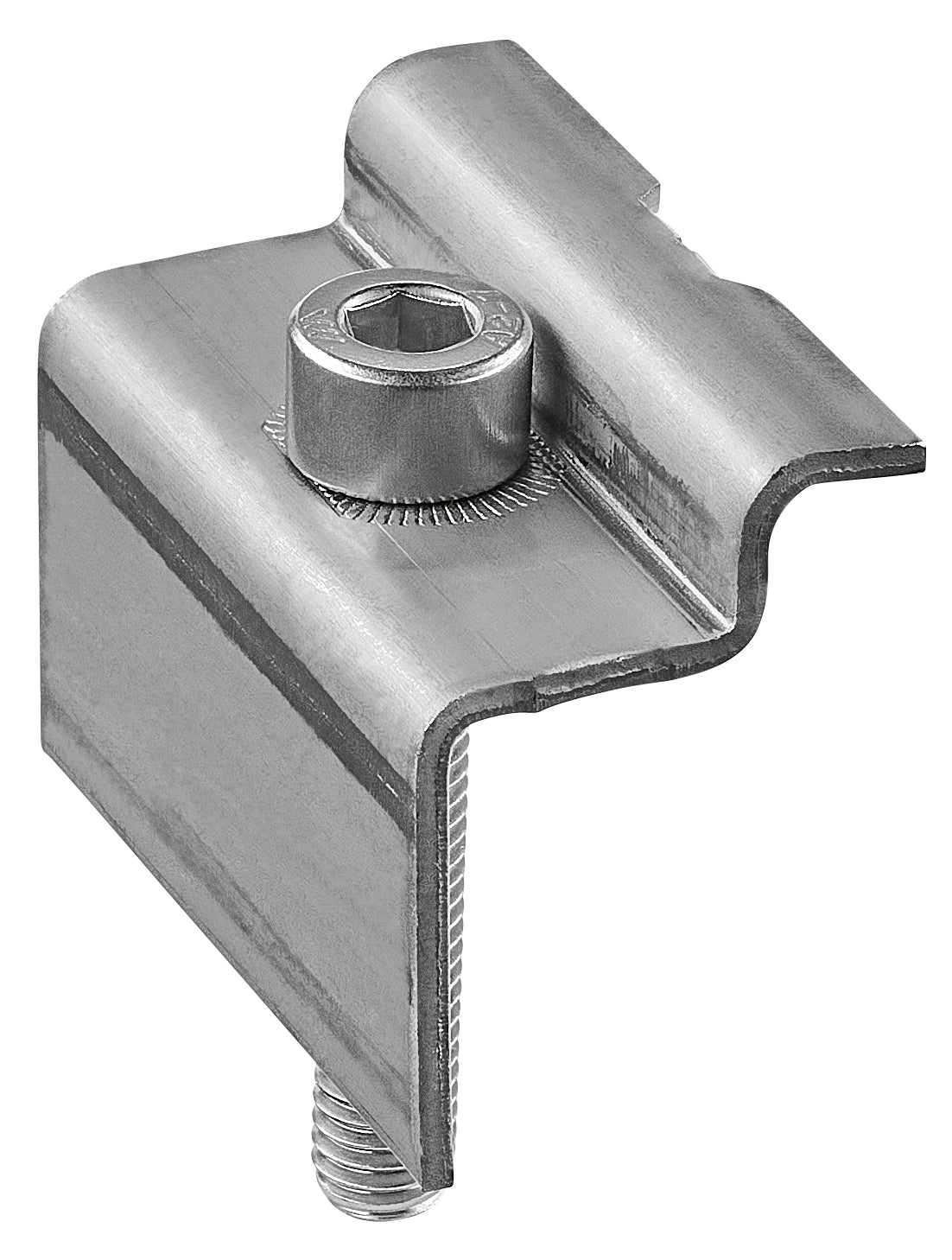

Clema capat 35mm
Main features and advantages
- High stability thanks to corrosion-protected zinc-magnesium sheet steel
- Roof type: Flat roofs with a tilt of up to 3° (foil, bitumen, concrete, gravel, green roofs)
- Max. building height 25m
- 12-year guarantee on the iFIX system
- Simple installation thanks to tool-free click system
- Loads: wind loads up to 1,400 N/m², snow load up to 3.8 kN/m²
- Module size: Frame 990 - 1145mm width, 1650 - 2100mm length, max. 2.17m²
iFIX mounting material - east-west orientation
- Tilt angle: 10°
- Special feature: High area utilisation for maximum yield
i
FIX mounting material - south-facing
- Tilt angle: 10°
- Installation: Click & Slide system with iFIX S Connector & Deflector
- Special feature: Deflector reduces ballast and improves stability
Additional features
- iFIX Tool - web-based planning software for PV projects
- Wind tunnel and static tests according to Eurocode
- Lightning protection and earthing components available
Specificații tehnice
| PROMO CODE CH |
4236-0002-77 |
| Ramă modul |
35 mm |
| PU |
150 |
| LxBxH mm |
50x30x50 |
| Unitate de ambalare |
1 m. |
| Descriere de bază |
Clemă |
| Fabricant |
VoestAlpine |
| COD PROMO |
4236-0002-52 |
| Masă netă |
0,10 kg/m |
| Greutate |
0.1 kg |
| Cod EAN |
9004840934236 |
| Cantitate minimă comandă |
1 buc. |
| Cod tarifar vamal |
73269098 |
Documentație
Cod produs Schrack: PVF42155--
